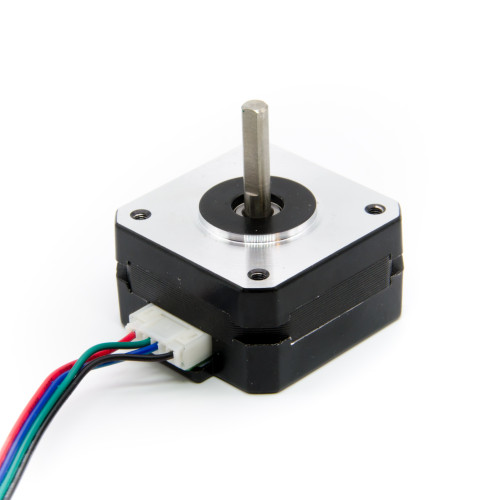

42x42x23mm Stepper Motor Nema 17 Pancake 17HS4023 0.7A 0.15Nm
This Nema 17 Pancake Stepper Motor is suitable for replicating Bondtech or Titan extruders on 3D printers. However, you can also use the motor very well for other mechanical Arduino projects. If you want to operate the stepper motor with the Arduino, we recommend you to also purchase an A4988, DRV8825 or TMC2208 driver.
Recommended Accessories:
- A4988 Stepper Motor Driver Module
- DRV8825 Stepper Motor Driver Module
- SilentStepStick TMC2208
- Single Stepper Motor Control Board A4988
- CNC Shield A4988 Arduino for 3D Printers and Milling Machines (GRBL)
Technical Details:
- Model: 17HS4023
- Nominal voltage: 12V
- Insulation class: B
- Phase: 2
- Resistance: 4 Ω/Phase
- Inductance: 3.2 mH/Phase
- Shaft length: 21mm
- Shaft diameter: 5mm
- Step angle: 1.8°
- Current consumption: 0.7A/Phase
- Holding torque: 0.15Nm
- Dimensions: 42 x 42 x 23mm
- Weight: 140g
Included in the Package:
- 1x 42x42x23mm Stepper Motor Nema 17 Pancake 17HS4023 0.7A 0.15Nm
- 1x connecting cable with 4P plug 1m
42x42x23mm Stepper Motor Nema 17 Pancake 17HS4023 0.7A 0.15Nm
- Brand: purecrea
- Product Code: 421140
- Availability: In Stock
-
CHF14,90
- Ex Tax: CHF13,78
