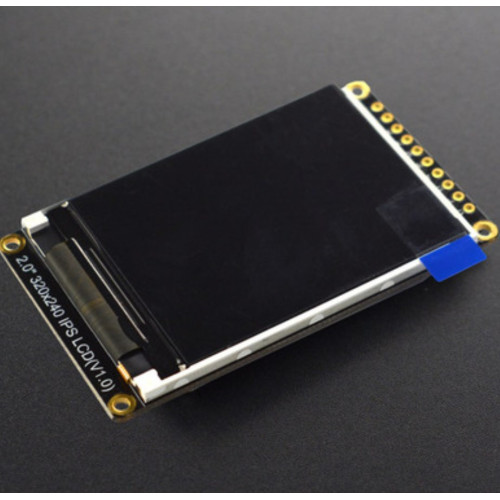

2\" 320x240 IPS TFT LCD Display with MicroSD

This display module from DFRobot is characterized by high resolution, low power consumption, wide angles, and easy wiring. With a display size of 2", it has a resolution of 320x240 pixels. The module has an IPS display, which has a very good viewing angle. It supports the SPI communication mode (4-wire) and the GDI port plug and play. The 2" LCD module can be operated with 3.3V to 5V, and the maximum power consumption is about 29mA. It is compatible with multiple microcontrollers like Arduino UNO, Leonardo, ESP32, ESP8266, FireBeetle M0, etc. When using the M0 or ESP32-E, the GDI interface can be used, which effectively reduces the wiring effort. In addition, there is a built-in MicroSD card slot on the module for displaying multiple images.

Recommended Accessories:

• 8GB MicroSDHC Card Memory Card Class 10 incl. SD Adapter

Features:

• Wide viewing angle
• High resolution
• GDI interface for plug and play
• Built-in MicroSD card slot
• 4-wire SPI interface

Documentation:

• DFRobot Wiki

Technical Details:

• Manufacturer: DFRobot
• Manufacturer SKU: DFR0664
• Operating voltage: 3.3 to 5V
• IPS viewing angle: 80/80/80/80
• Color depth: 16bit (RGB565)
• Resolution: 320 × 240pixels
• Connection port: SPI
• Driver Chip: ST7789
• Brightness: 250cd/m2 (Typ)
• Power consumption at full screen: approx. 29mA (3.3V) 29m (5V)
• Operating temperature: -30°C to +70°C
• Display area: 30.6 × 40.8mm
• Diameter of mounting hole: 2mm
• Dimension: 35.7 x 60 x 3.7mm
• Weight: 25g

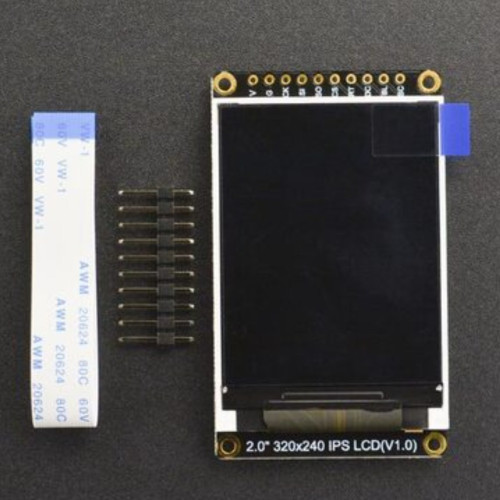

Scope of Delivery:

• 1x 2" 320x240 IPS TFT LCD Display with MicroSD
• 1x 1x10p Pin Header
• 1x 10cm FPC0.5-18PIN GDI Connection Cable for M0 or ESP32-E
