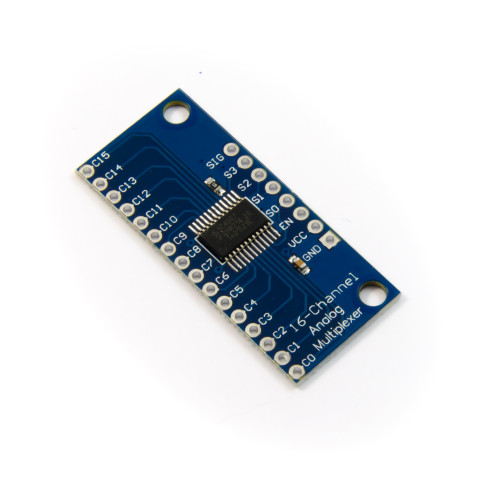

16-Channel Analog/Digital Multiplexer MUX CD74HC4067

If you don't have enough analog inputs or outputs for your Arduino project, this breakout module is the solution to your problem. With the multiplexer, you can extend one analog input or output of your Arduino by 16 inputs. To control and read out the multiplexer, you only need four digital outputs and one analog input/output.

You can find a suitable library for Arduino on Github at the following link:

https://github.com/mikedotalmond/Arduino-Mux-CD74HC4067

You can also buy many other components for your Arduino projects from us, just look around in our online shop!

Connections:

• C0 to C15 Analog input is switched to SIG

• SIG

• S3

• S2

• S1

• S0

• EN

• VCC

• GND

If you have any questions or problems with the control or suggestions about the product description, just send us an email or use the review function. We would be happy to help.

Technical Details:

• Operating voltage: 2V to 6V

• Grid size: RM 2.54mm

• Size: 41 x 18 x 2.2mm

• Weight: 2g


---

Delivery contents:

1x 16-Channel Analog/ Digital Multiplexer MUX CD74HC4067
